AAP as an A2A profile

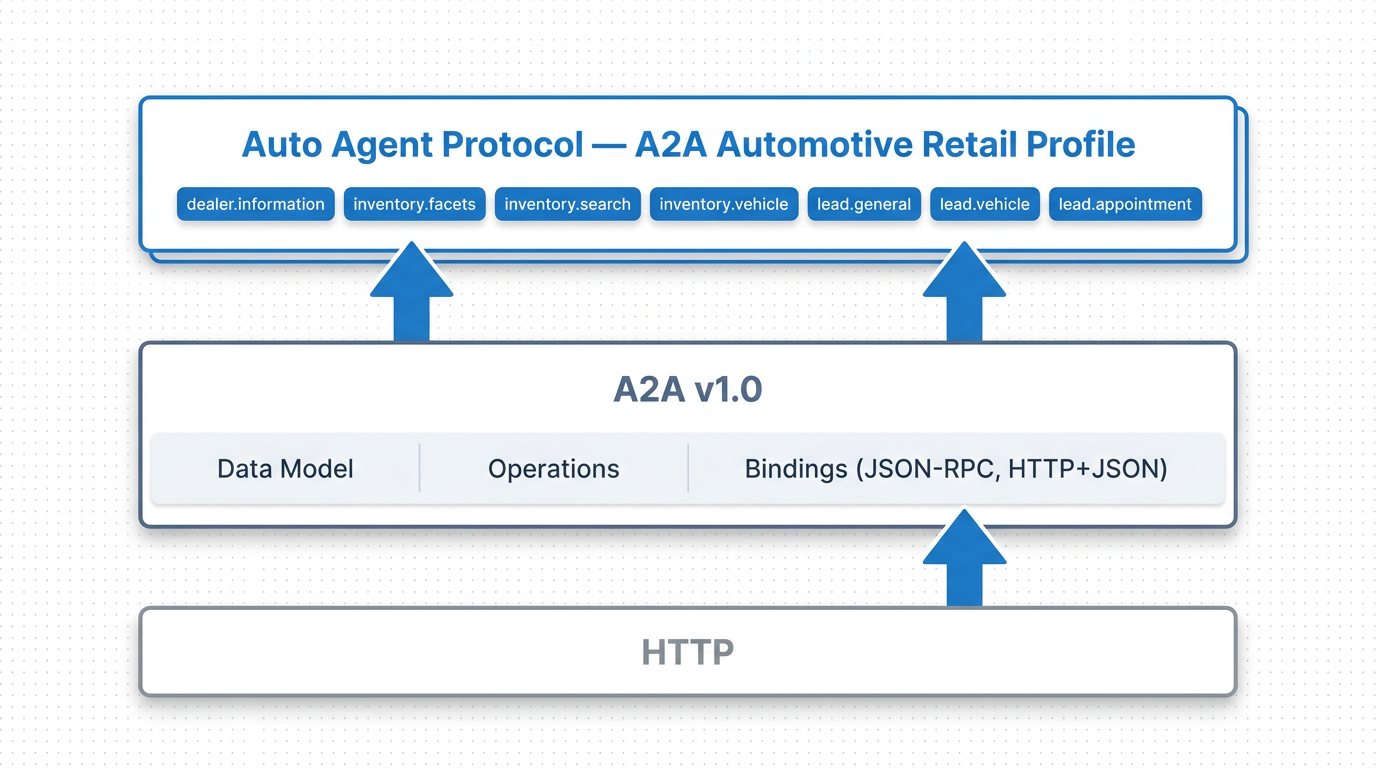

Three-layer stack: HTTP, A2A v1.0, and the AAP automotive profile

The Auto Agent Protocol is a strict profile of A2A v1.0. It does not redefine discovery, message envelopes, the task model, or transport. It only constrains the shape of one specific A2A construct: typed DataParts carried inside Message.parts[].

The three layers of A2A​

A2A is structured in three layers. AAP sits as a profile that constrains layer 1 (data model).

A2A clients and servers can mix and match: any abstract operation can be called over any binding, with the same data model.

Where AAP fits​

AAP is a layer 1 profile. It defines:

  1. Required skills. Seven skills[].id values an AAP-compliant agent card MUST advertise: dealer.information, inventory.facets, inventory.search, inventory.vehicle, lead.general, lead.vehicle, lead.appointment.
  2. Typed DataPart payloads. For each skill, an exact request and response JSON Schema. Each payload includes a type field whose value is <scope>.<thing>.request or <scope>.<thing>.response (e.g. inventory.search.request). The AAP version is announced once via the agent-card extension URI; it is not repeated on the wire.
  3. An extension URI. https://autoagentprotocol.org/extensions/a2a-automotive-retail/v0.1, declared in capabilities.extensions[] of the agent card.
  4. A machine-readable contract manifest. Published at /.well-known/auto-agent-contract.json, linked from the agent card via the extension's params.manifest_url.

AAP does NOT redefine layer 2 (abstract operations) or layer 3 (protocol bindings). All AAP skills are invoked via standard A2A SendMessage (which maps to the POST /message:send URL on the HTTP+JSON binding). The agent card lists either the JSON-RPC 2.0 binding, the HTTP+JSON binding, or both. gRPC is not in scope for AAP v0.1.

The typed DataPart pattern​

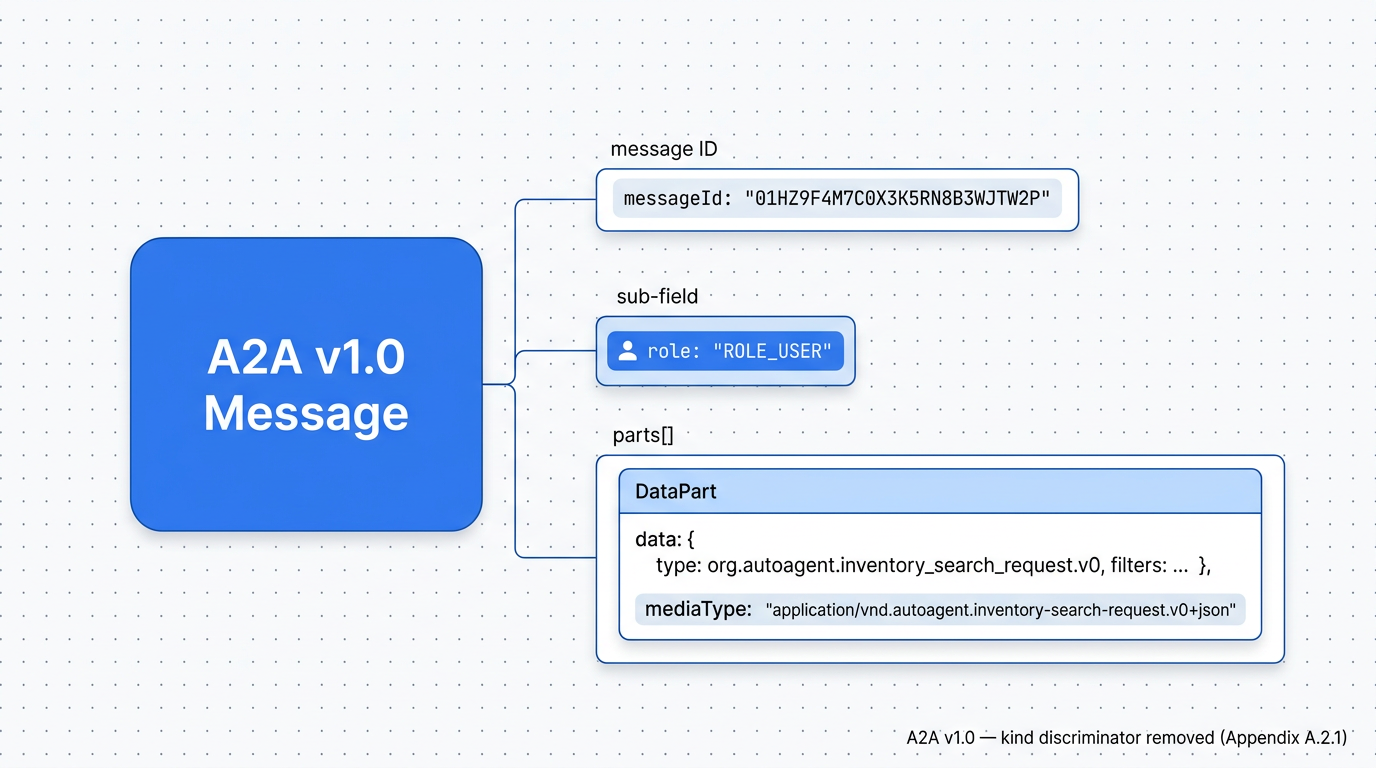

Anatomy of an A2A v1.0 Message: messageId, role: ROLE_USER, and a typed DataPart with data + mediaType

A2A messages are composed of one or more parts. Each part identifies its kind by the member it carries — a part with a text member is a TextPart, with a file member is a FilePart, with a data member is a DataPart. AAP only uses DataParts — it never relies on free-text natural-language parsing for protocol semantics.

A DataPart looks like this in A2A v1.0:

{
  "data": {
    "type": "inventory.search.request",
    "filters": { "make": ["Honda"] },
    "pagination": { "skip": 0, "limit": 20 }
  },
  "mediaType": "application/vnd.autoagent.inventory-search-request+json"
}

The type field is the AAP-typed identifier. Every AAP request and response carries a type matching the regex ^org\.autoagent\.[a-z_]+\.v[0-9]+$. This lets a buyer agent or middleware validate the payload against the right schema without inspecting the surrounding A2A envelope. The mediaType field on the part advertises the AAP media type so generic A2A middleware can route or filter parts without parsing the inner data.

A2A v1.0 wire format

A2A v1.0 removed the kind discriminator on parts and switched roles to protobuf enum strings. AAP uses role: "ROLE_USER" for buyer-agent messages and role: "ROLE_AGENT" for dealer responses, and every Message carries a unique messageId.

Concrete example: inventory.search​

A full A2A Message carrying an AAP request:

{
  "messageId": "01HZ9Q2V5L8F1U3ABV6K1ETBDEX",
  "role": "ROLE_USER",
  "parts": [
    {
      "data": {
        "type": "inventory.search.request",
        "filters": {
          "make": ["Honda"],
          "condition": ["used", "certified"],
          "year_min": 2020,
          "price_max": 30000
        },
        "pagination": { "skip": 0, "limit": 20 },
        "sort": { "field": "price", "order": "asc" },
        "privacy": { "anonymous": true }
      },
      "mediaType": "application/vnd.autoagent.inventory-search-request+json"
    }
  ]
}

The dealer agent replies with an A2A Message containing the AAP response:

{
  "messageId": "01HZ9Q2W9SH5ZB6DUA0J1K2L3M",
  "role": "ROLE_AGENT",
  "parts": [
    {
      "data": {
        "type": "inventory.search.response",
        "data": {
          "total": 1,
          "skip": 0,
          "limit": 20,
          "vehicles": [
            {
              "dealer_id": "dealer_demo_toyota",
              "vin": "1HGCY2F57RA000001",
              "stock": "T12345",
              "year": 2022,
              "make": "Honda",
              "model": "Civic",
              "trim": "EX",
              "condition": "certified",
              "list_price": { "amount": 24990, "currency": "USD" },
              "price": { "amount": 26780, "currency": "USD" },
              "status": "In Stock",
              "last_verified_at": "2026-04-30T10:15:00Z"
            }
          ]
        }
      },
      "mediaType": "application/vnd.autoagent.inventory-search-response+json"
    }
  ]
}

The outer envelope around this Message differs by binding (JSON-RPC 2.0 vs. HTTP+JSON), but the Message itself — and the AAP DataPart.data — is identical in both cases. See JSON-RPC binding and REST binding for full envelope examples.

Why typed DataParts instead of natural-language parts​

An AI agent could in principle stuff a search query into a TextPart and let the dealer's LLM parse it. AAP does not allow that for protocol calls because:

  • Buyer agents need deterministic schemas to plan and validate.
  • Dealer CRMs need structured data to write to ADF/XML and downstream lead pipes.
  • Pricing and consent are regulated; ambiguous natural language increases compliance risk.
  • Validation tooling (Ajv, ajv-formats, OpenAPI clients) only works on structured payloads.

A buyer agent MAY include free-text TextParts in the same Message for human-readable context. AAP defines no semantics for them — only the typed DataPart is normative.

Discovery, manifest, and bindings: the rest of the profile​

AAP layers two more pieces on top of the base A2A surface:

PieceWhere it livesPurpose
Agent card with AAP extension/.well-known/agent-card.jsonA2A discovery; declares the AAP extension URI and lists the seven required skills.
Contract manifest/.well-known/auto-agent-contract.jsonMachine-readable per-skill schema URLs and consent/anonymous policy for buyer-agent planning.
Binding sectionsA2A Sections 9 and 11How AAP DataParts ride inside JSON-RPC 2.0 and HTTP+JSON envelopes.
